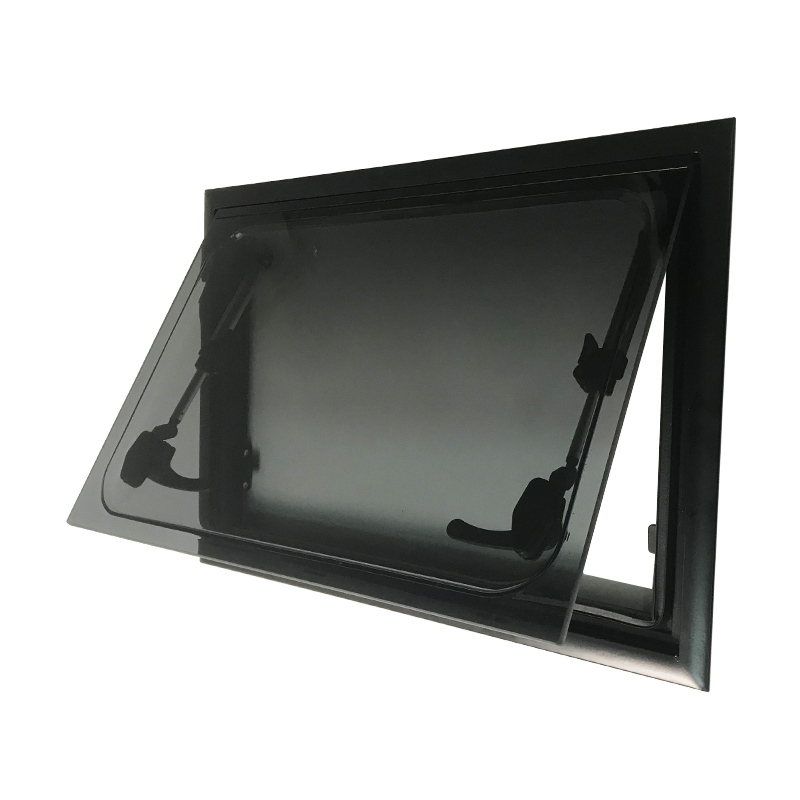

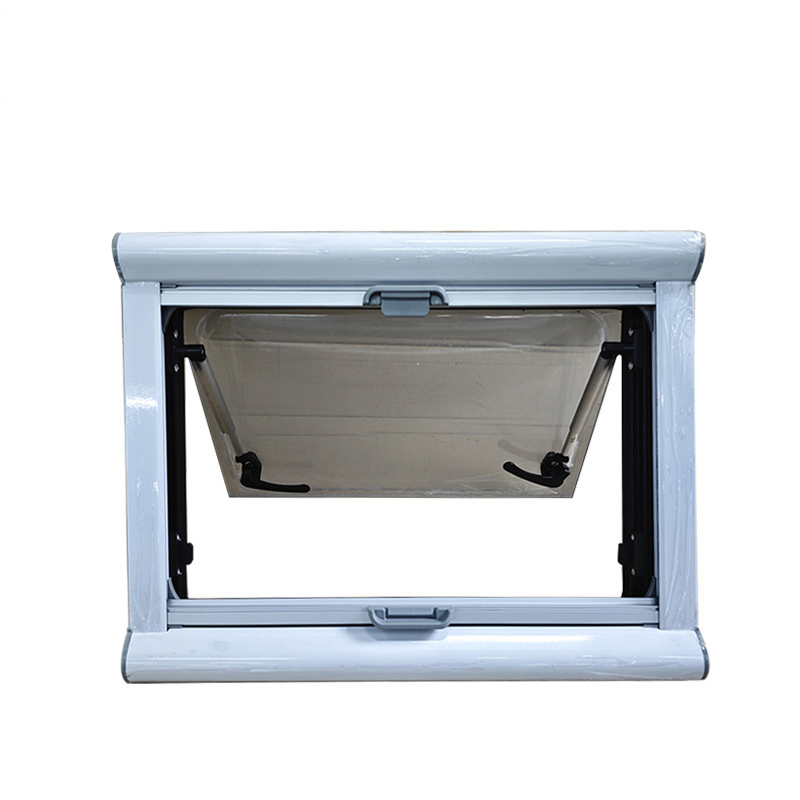

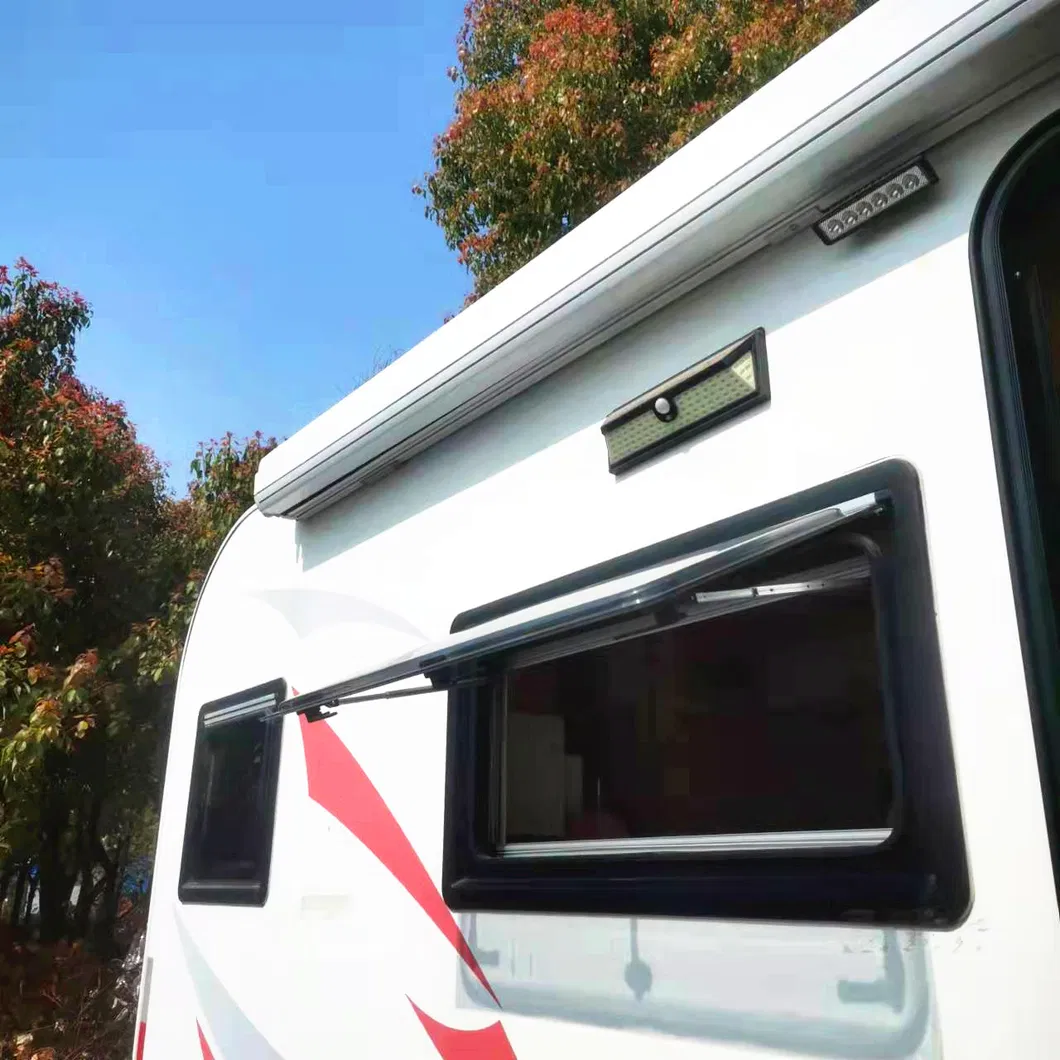

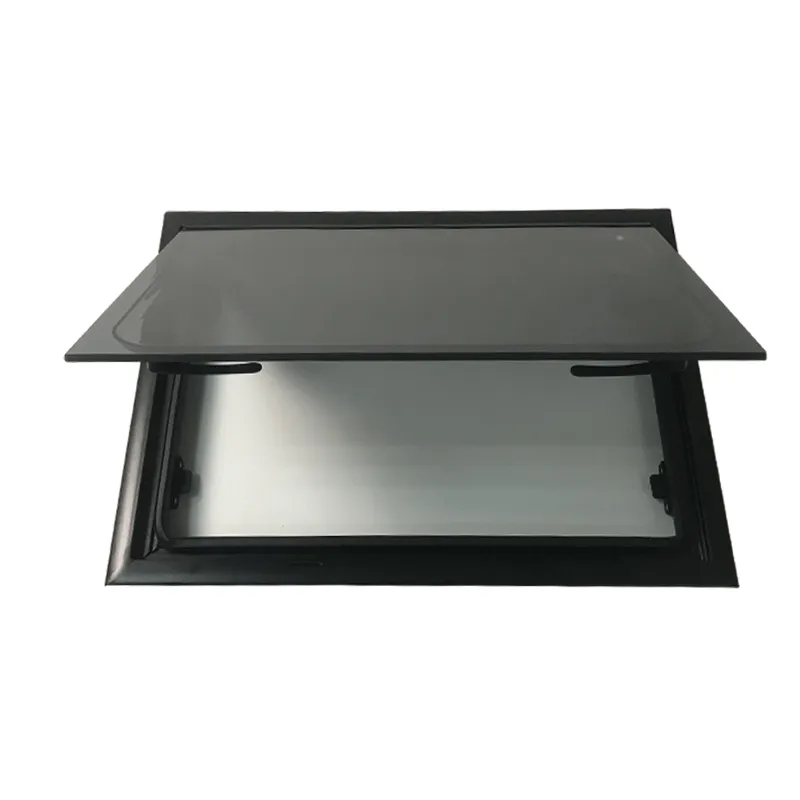

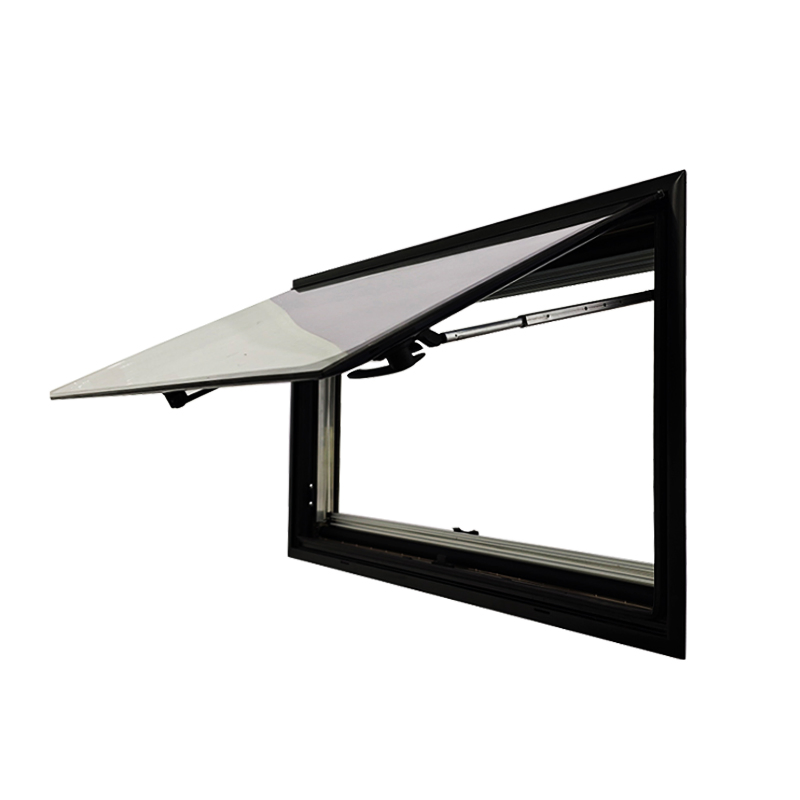

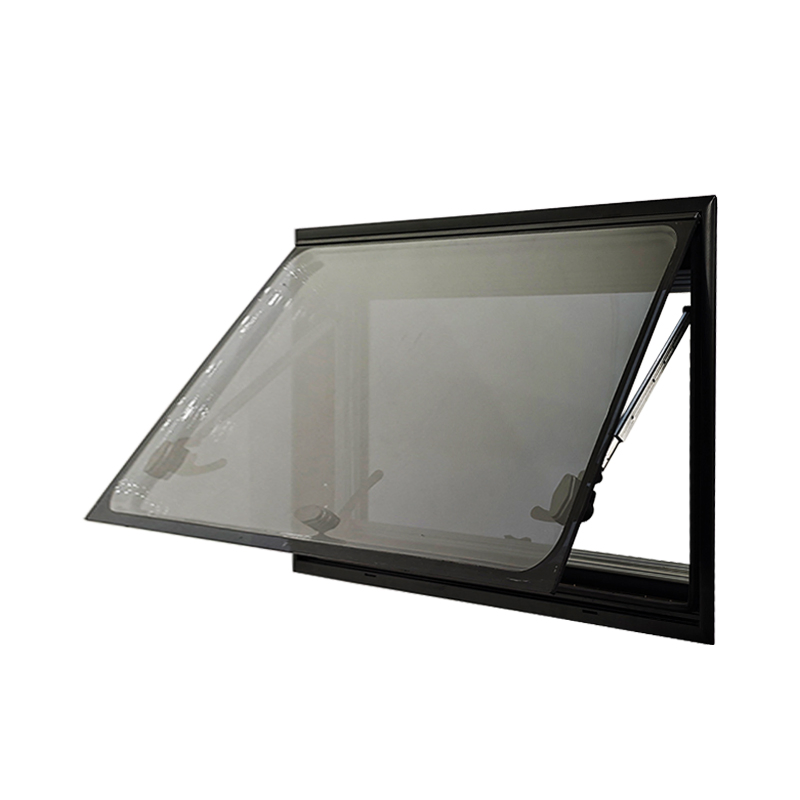

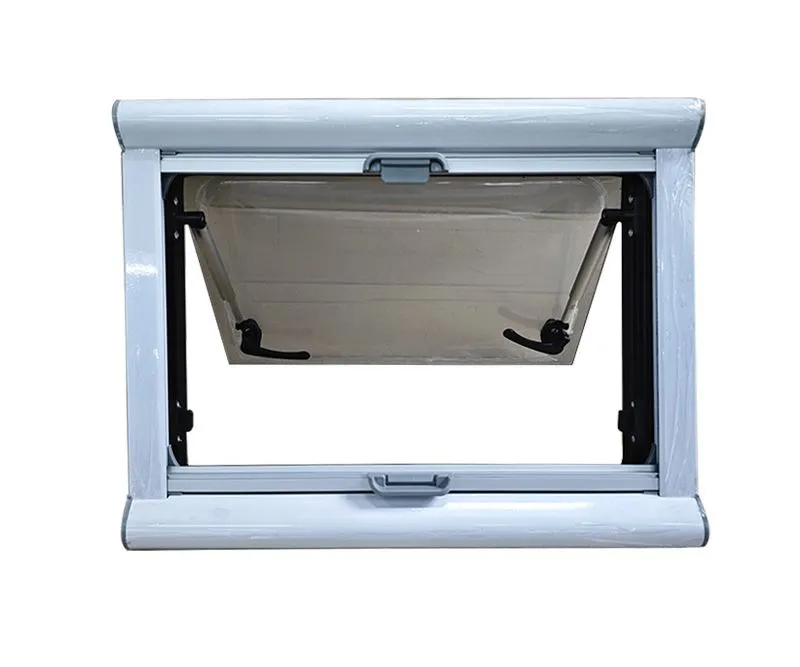

MG23RW Right-angle RV window provides maximum ventilation in the motorhome featuring push-out acrylic glass that can be opened for up to 70 degrees with telescopic struts. The telescopic support rod allows you to fix the window at different positions securely.
| Material | Aluminum outer frame, ABS or aluminum inner frame, and double-glazed anti-UV acrylic glass |
|---|---|

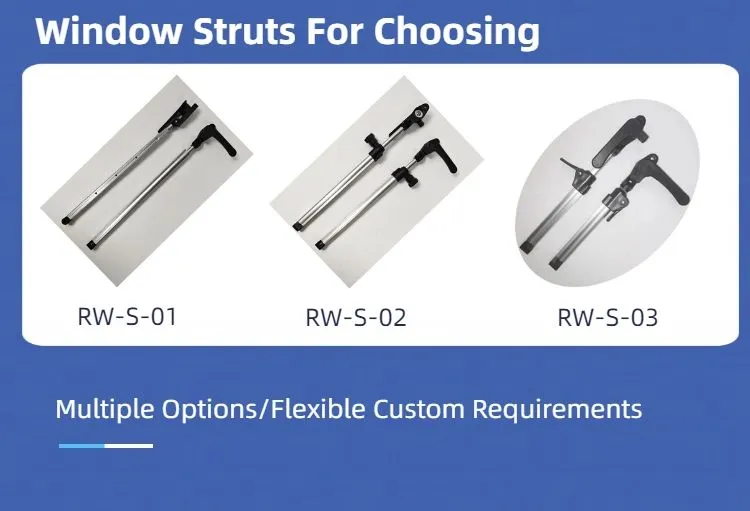

| Max. Opening Angle | 70 degrees, adjustable with telescopic or fixed support rods. |
| Installation | Easy-to-quick clamping installation method |
| Fitted Wall Thickness | 25-35mm, 32-42mm, 40-50mm, or custom over 50mm |
| Functions | Ventilation, insulation, privacy, sunlight control, insect prevention, and water sealing. Acts as an emergency exit when screen/blind are unlocked. |

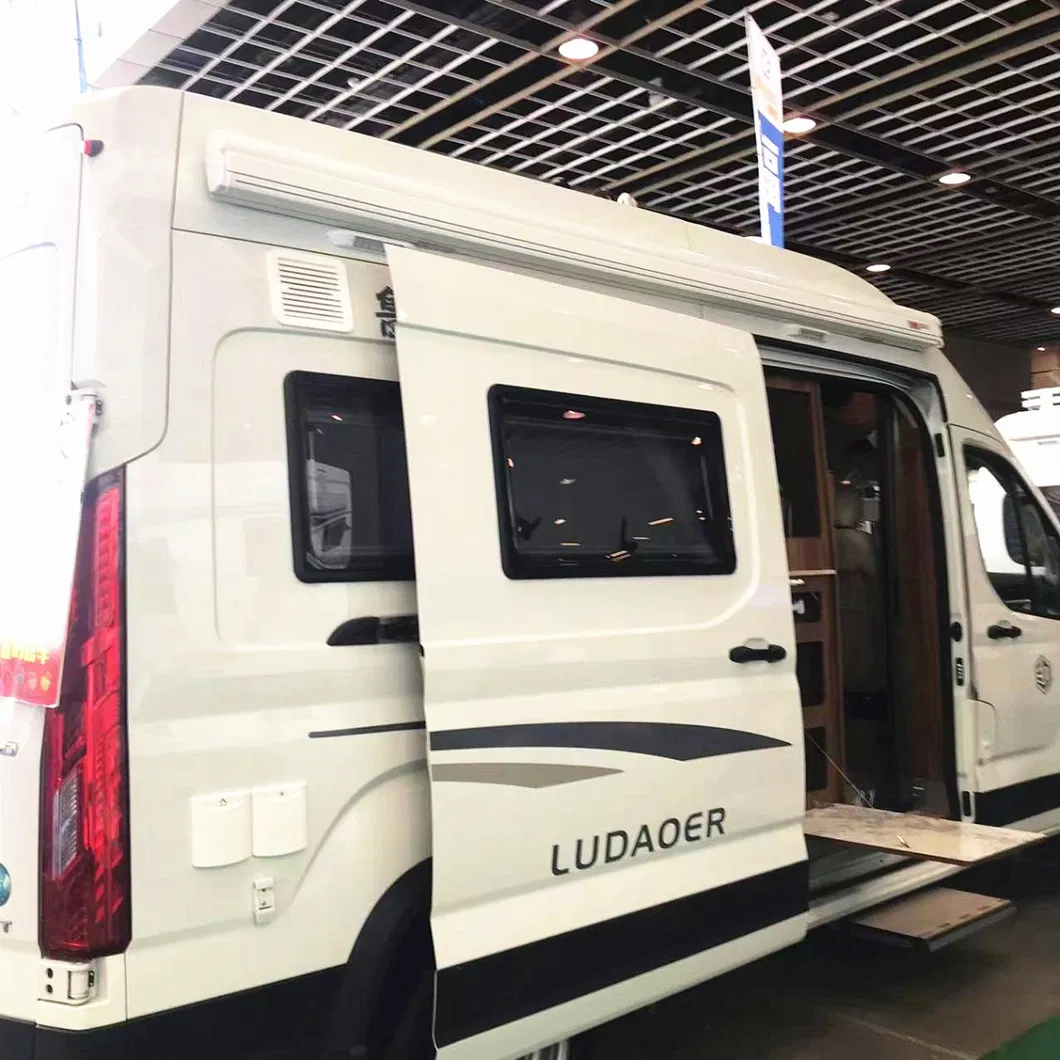

| Applications | Perfect for all kinds of RVs, modified cars, and flat surface buildings. |
| Ser. | Product Code | Cut-out Size (W*H mm) | Overall Size (W*H mm) |
|---|---|---|---|
| 1 | 23RW-350280 | 350*280 | 372*302 |
| 2 | 23RW-500350 | 500*350 | 522*372 |
| 4 | 23RW-500450 | 500*450 | 522*472 |
| 6 | 23RW-600600 | 600*600 | 622*622 |
| 9 | 23RW-700500 | 700*500 | 722*522 |
| 12 | 23RW-800500 | 800*500 | 822*522 |
| 14 | 23RW-900500 | 900*500 | 922*522 |
| 18 | 23RW-1000500 | 1000*500 | 1022*522 |
| 21 | 23RW-1100450 | 1100*450 | 1122*472 |
| 24 | 23RW-1200500 | 1200*500 | 1222*522 |
| Other custom sizes are available upon request | |||
