Industrial Aluminum Alloy High Speed Rapid Roll Door Fast Automatic Entry Shutter Door with Finished Surface for Garage or Warehouse

Customization: Available
After-sales Service: Online Technical Support/Parts Replacement
Warranty: 1 Years

Product Description

📋

Basic Information

Model NO.
Aluminum roller high speed door
Material
Aluminum Alloy
Type
Rolling
Open Style
Rolling
Opening Type
With Remote Control
Special Function
Security
Color
Customized
Certification
ISO9001, CE
Position
Industrial
Surface Finishing
Finished
Package
Wooden Box
Capacity
5000 Sets/Year
📦

Packaging & Delivery

Package Size
3500.00cm * 600.00cm * 600.00cm
Gross Weight
2000.000kg
🚀

Product Description

Aluminum alloy roller high speed door is between traditional rolling door and turbo fast door, with faster opening and closing speed and better sealing performance. The door curtain adopts wider and thicker aluminum alloy curtain, which improves the overall strength and durability, and is suitable for industrial environments with certain requirements on passage efficiency. Compared with the ordinary aluminum alloy rolling door running more smoothly, more simple than the turbine fast door structure, both cost-effective and practical, widely used in factories, warehouses and medium-sized logistics channel.

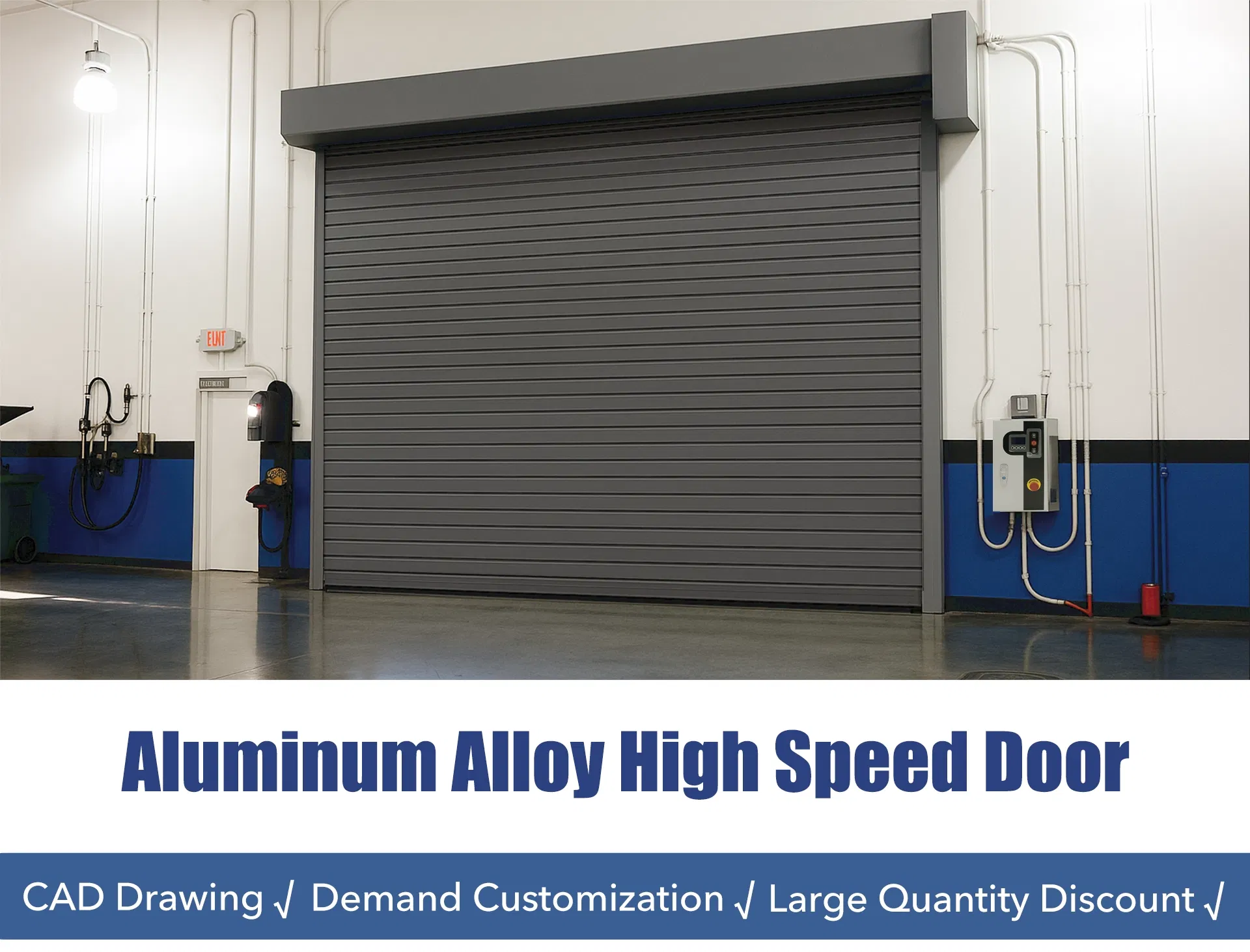

Aluminum Alloy High Speed Door
📊

Technical Data

Maximum sizewidth*height 6000mm*6000mm
Panel materialAluminum alloy(Optional additional PU foam filling)
Power supply220±10%V, 50/60Hz. Output power 0.75-1.5KW
Max speedopen 2.0m/s, close 1.0m/s
Protection levelIP55
Control systemServo type
Driving systemServo motor
Wind resistanceBeaufort scale 12 (35m/s)
Sound insulation25DB
Water tightness30pa
Thermal conductivity1.9W/m².K
🛠️

Structure & Product Details

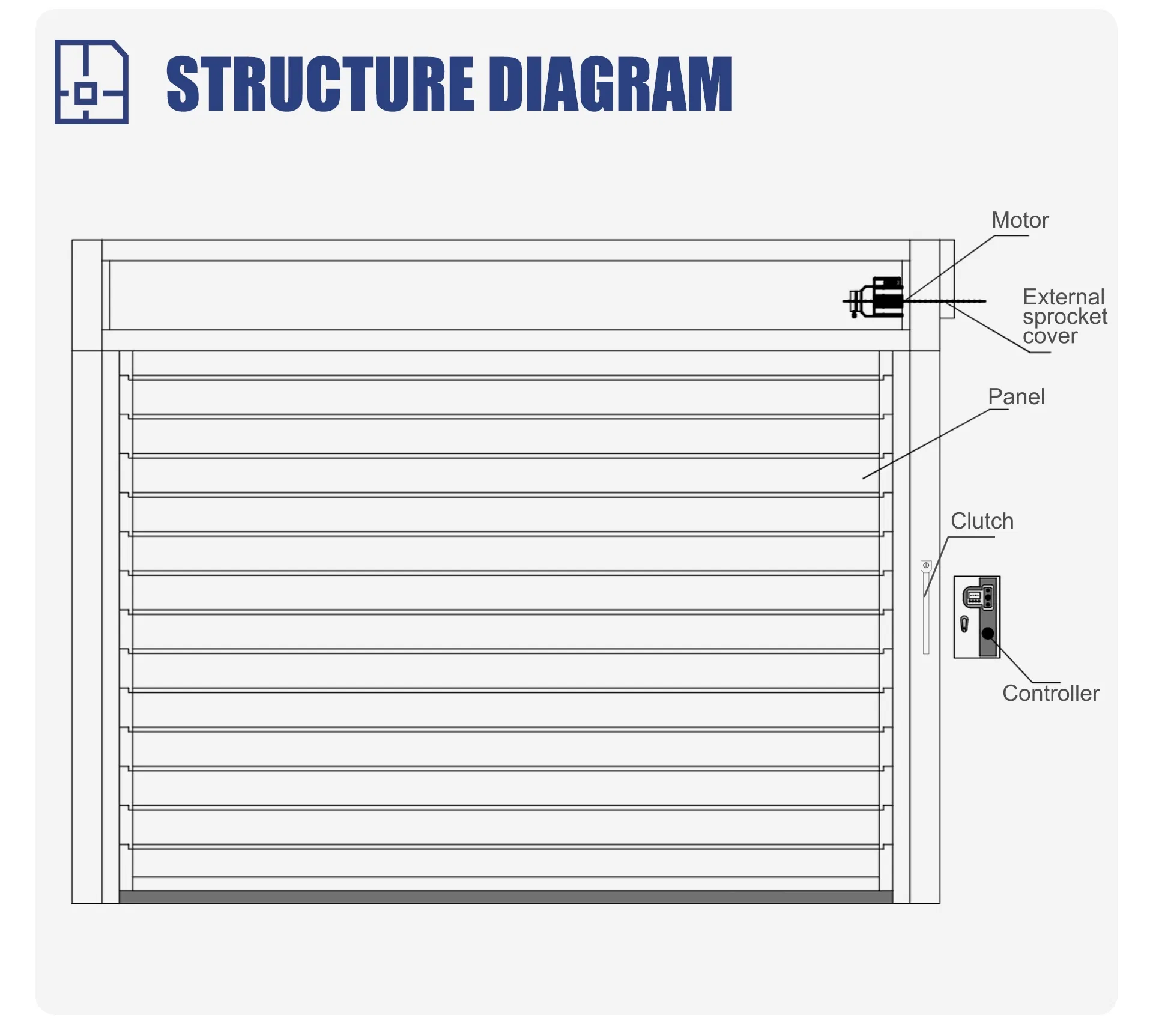

Structure Diagram
Standard version of the aluminum alloy high speed door structure and accessories.

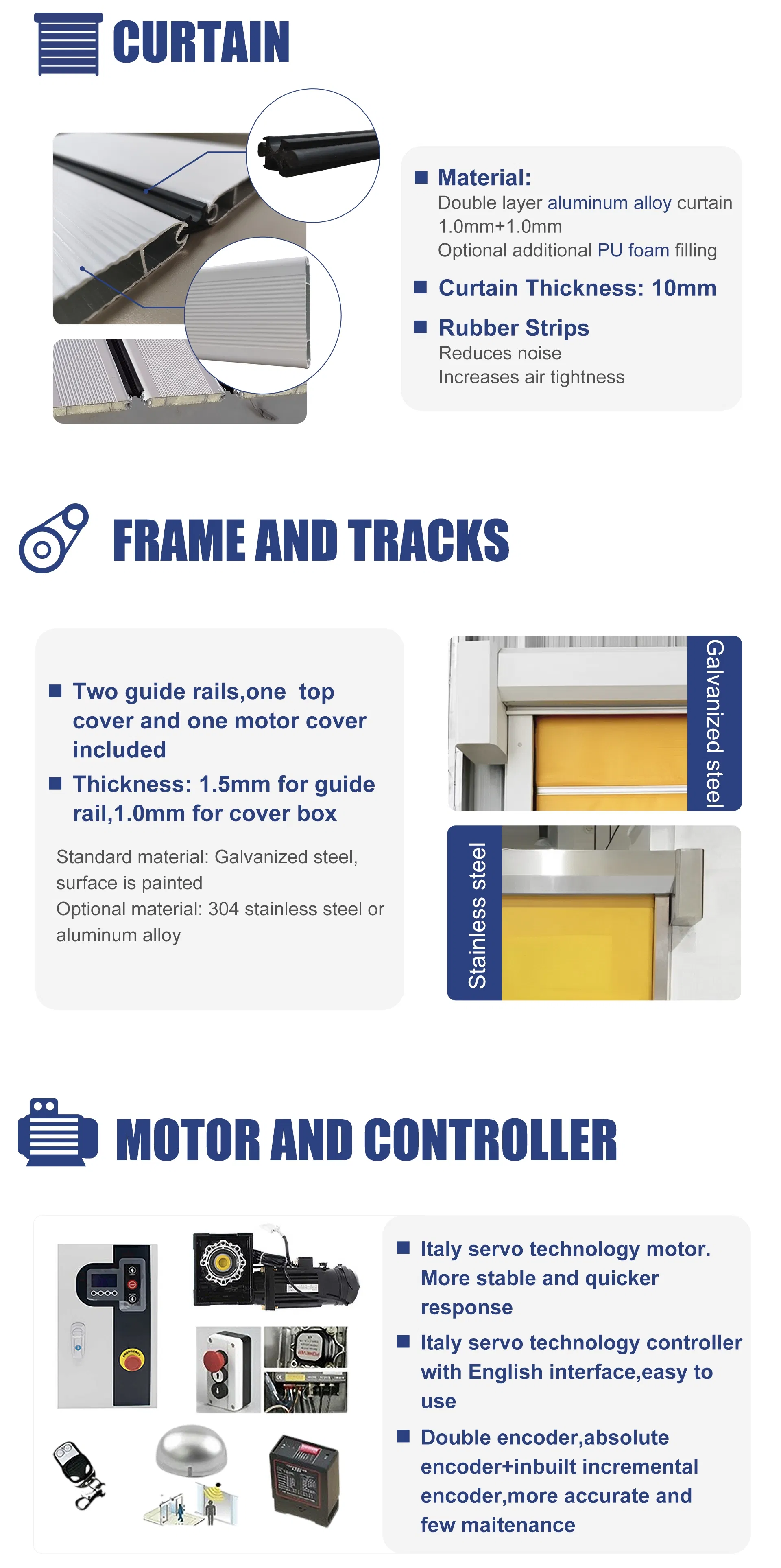

Detail 1

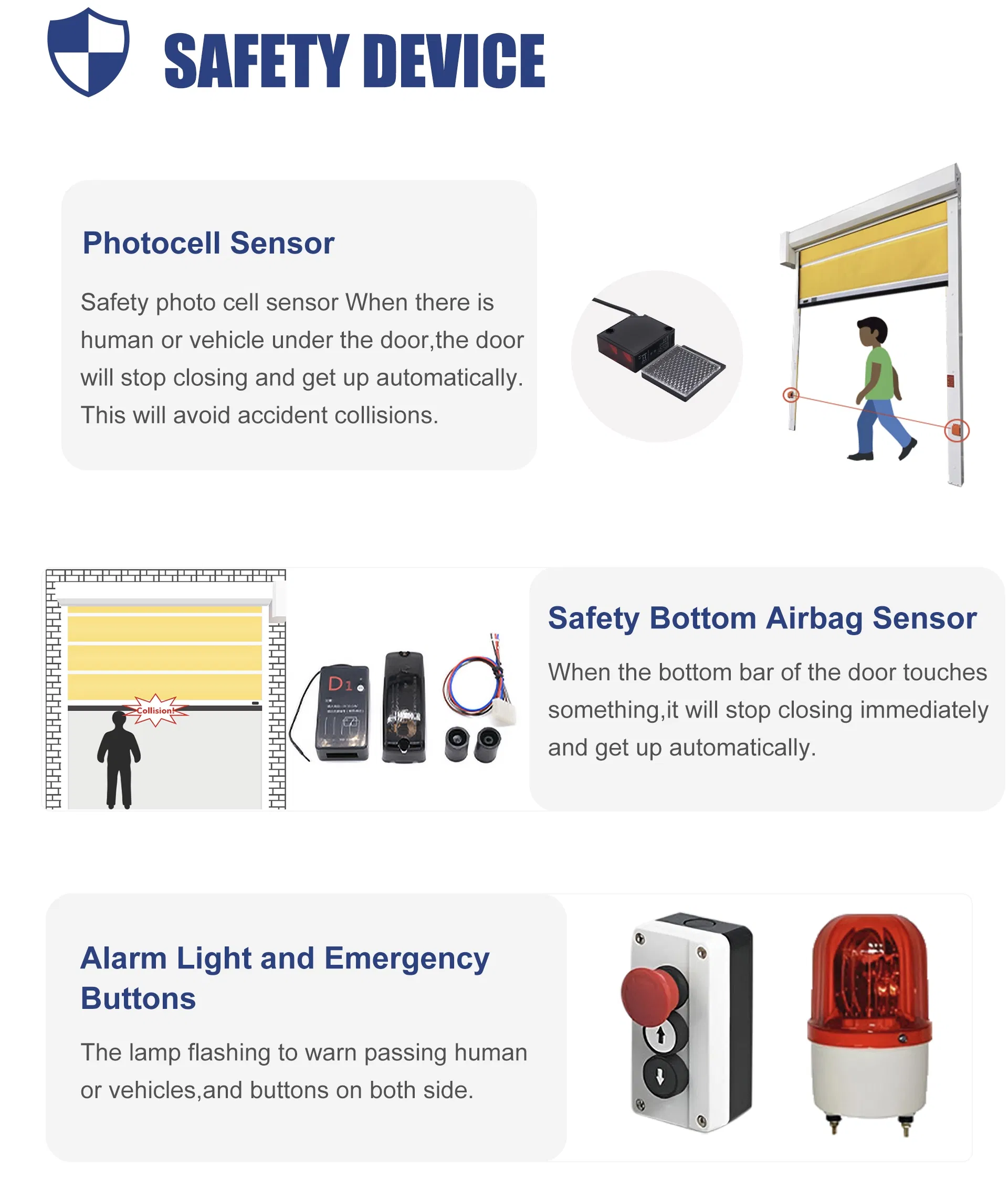

Detail 2

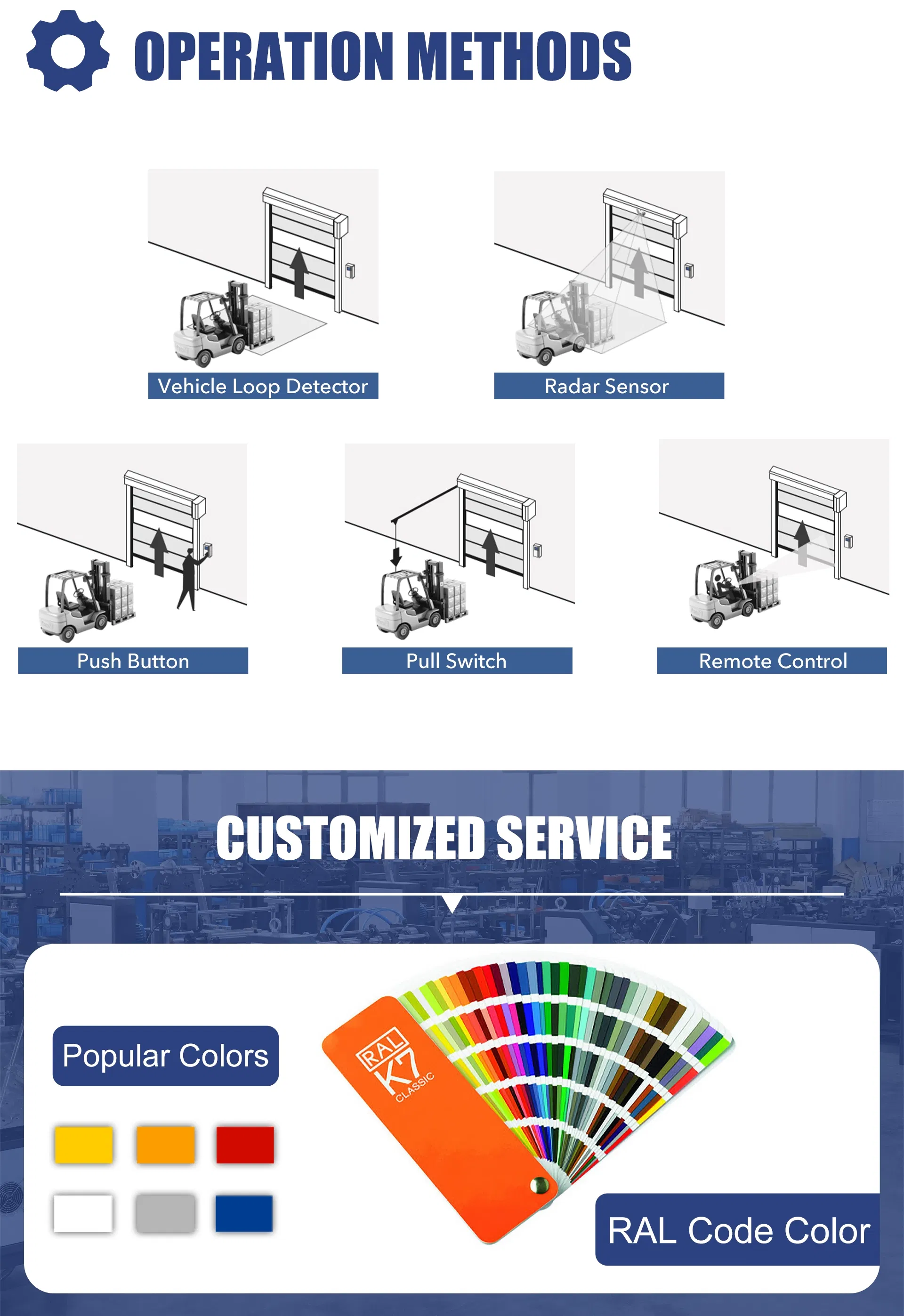

Detail 3
🏭

Factory Showcase

Production 1
Production 2
Production 3
Production 4

Frequently Asked Questions

What is your Minimum Order Quantity (MOQ)?
There is no limit. We accept orders starting from 1 set.
What is the typical delivery time?
The delivery time is approximately 15 to 30 days depending on the order specifications.
How are the products packaged for transport?
We use durable polywood boxes to ensure the safety of the doors during international transit.
How can I get an exact price for my project?
Please provide the exact size and quantity of your required door. We will provide a detailed quotation based on your specific requirements.
Is the installation process difficult?
The doors are designed for easy installation. We provide a manual book and installation videos for your reference. Technical support is also available.
What other types of doors do you produce?
We produce a wide range of doors including sectional garage doors, industrial doors, roll shutter doors, and hangar doors.
